Description
|
Processor Support
|
Intel Socket LGA1851 Supports Intel Core Ultra (Series 2) series processors
|
|
Chipset
|
H810 chipset
|
|
Memory Support
|
2*DDR5 SO-DIMM slot,6400 MT/s, up to 64GB
|
|
LAN
|
1*RTL8111H 10/100/1000Mbps Ethernet support Wake On LAN
|
|
Audio
|
1* Realtek ALC897 high fidelity audio controller
|
|
Storage
|
1*M.2_WIF E key support type 2230 WiFi/BT/CNVi
|
|

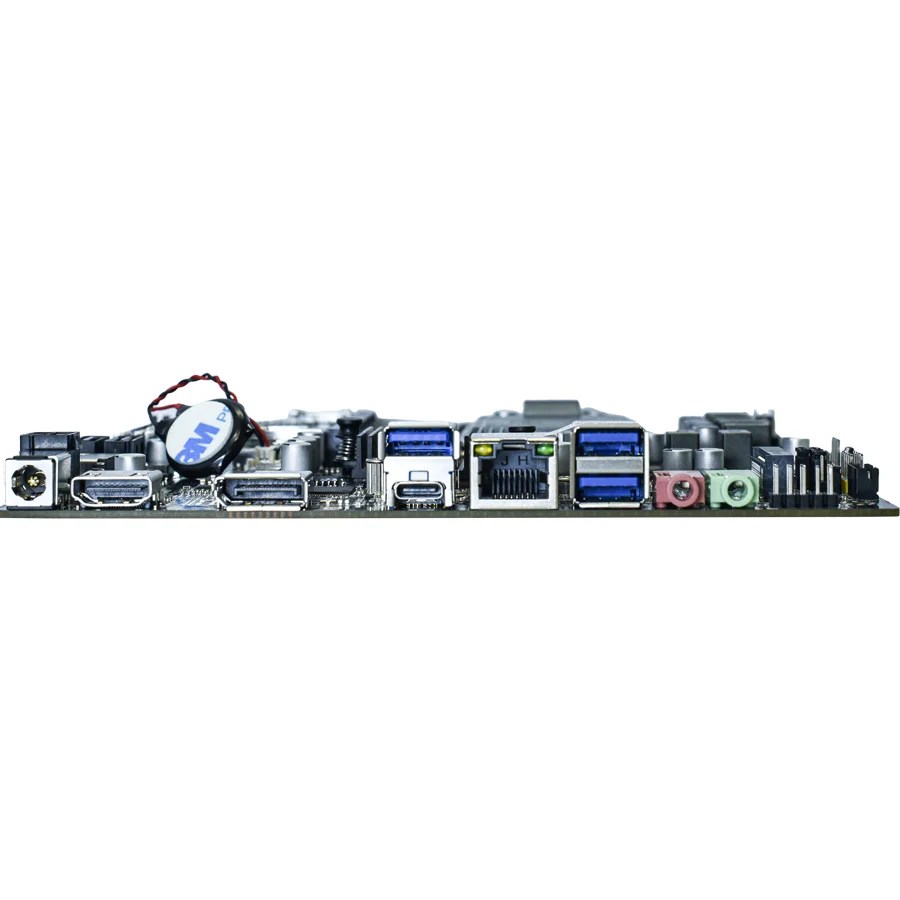

Back panel
|
1*DC_IN port
1*HDMI2.1 port 1*DP2.0 port 2*USB3.2 Gen2 ports 1*RJ45 por 1*USB3.2 Gen1 port
1*TYPE_C 5Gb port 1*MIC_IN 1*LINE_OUT |
|

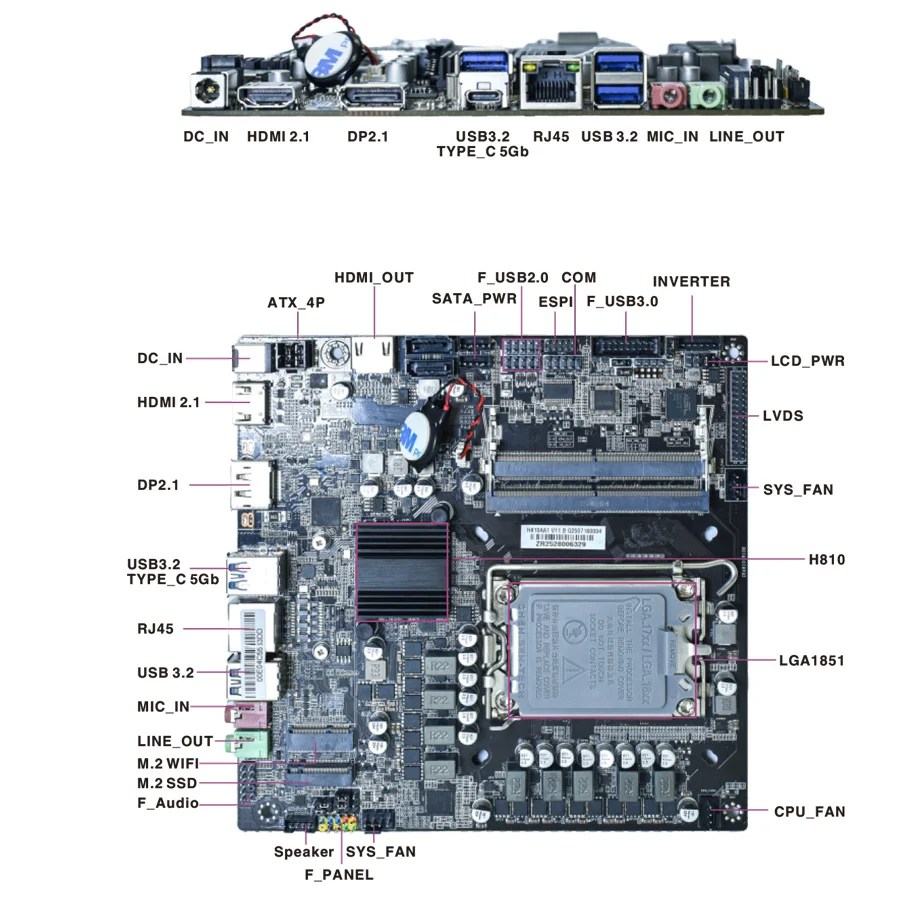

On-Board Pinheaders / Connectors
|
1*F_AUDIO connector
1*SPEAKER connector 1*CPU_FAN 4P connector 1*SYS_FAN 4P connector 1*F_PANEL connector 1*TPM hardware module optional 1*eSPI connector 1*COM connector 1*F_USB3.0 connector support 2*USB3.0 ports 2*F_USB2.0 connector support 4*USB2.0 ports 1*CLR_CMOS connector
1*AUTO_PWR connector 2*SATA_PWR connector 1*LVDS connector 1*INVERTER connector 1*BKL_CON connector 1*LCD_PWR connector 1*PWR_SEL connector 1*CS551X_PWR connector 1*HDMI_OUT port 1*ATX_4P power port |
|
Slots
|
1*M.2_WIF E key support type 2230 WiFi/BT/CNV
|
|
Form Factor
|
MINI_ITX 170mm x 170mm
|
